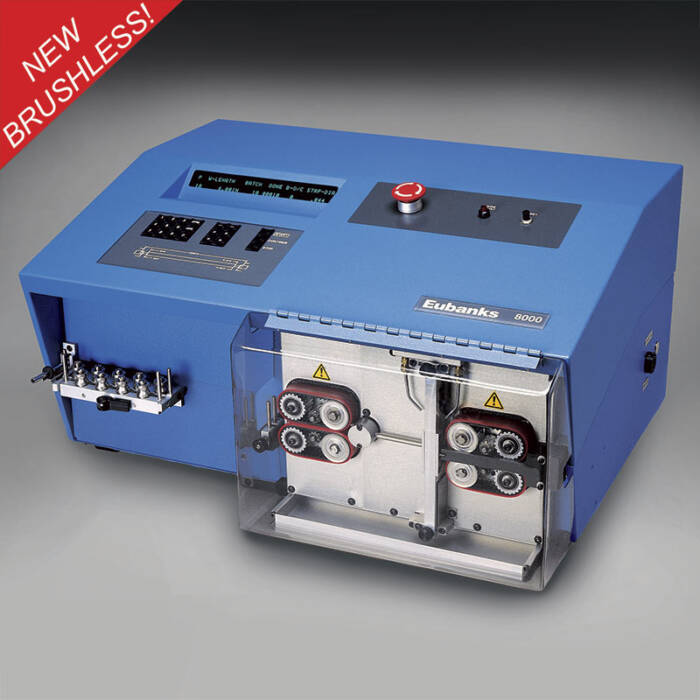

AutoStrip 8900-01/-02

The new Eubanks Model 8900 is equipped with very powerful maintenance-free, high-precision brushless motors.   The 8900 will handle from delicate 32 AWG and up to heavy 2 AWG (33.6mm²) battery cable or welding wire, without a struggle.  This covers the complete wire spectrum of the most popular wire sizes used in the industry.  The 8900 is the only machine one needs.

Eubanks 8900 is more powerful with greater reliability; it is the fastest and most versatile of the AutoStrip machines. Aside from the extended 32-2 AWG capacity, the 8900 also does an excellent job of cutting and stripping flat cable and multi-conductor cable up to 9/16” (14mm) in diameter.  Strip lengths are almost unlimited. It can produce strip lengths of up to 20” (500mm) on both ends.

The 8900 uses larger, thicker, long-lasting, high-quality tool steel blades.  Eubanks provides a cassette loading tool for easy and quick blade insertion.  Blade changeover is done in seconds, without any need for calibration or blade fastening.  The 8900 can be programmed to do step-stripping, batch counting, and center-stripping.

Download the Eubanks Engineering AutoStrip 8900 specifications for more detailed information.

Click here for details on ordering supplies like blades and tools.

Description

DIMENSIONS:

13″H x 26″W x 22″D
(330mm x 660mm x 560mm)

WEIGHT:

Net: 1441b. (66kg)
Shipping: 2351b. (107kg)

PRODUCTION RATES:

The 8900 production rates vary with wire length, strip length, wire size, blade back-up, and wire drive speed and acceleration rates. For 18 AWG wire (0.82mm2) with a 1/4″ (6mm) semi-strip on each end, the maximum production rates are:

Strip Both Ends (pieces/hour) Cut Only (pieces/hour)
Wire Length Single Wire Dual Wire Single Wire Dual Wire
4″ (100mm) 4,400 8,800 7,000 14,000
20″ (500mm) 3,600 7,200 5,100 10,200
40″ (1M) 2,900 5,800 3,800 7,600
100″ (2.5M) 1,800 3,600 2,200 4,400
394″ (10M) 700 1,400 720 1,440
600″ (15M) 480 960 500 1,000
1200″ (30M) 250 500 260 520
