AutoStrip 4900-21/-22

AutoStrip 4900-21/-22

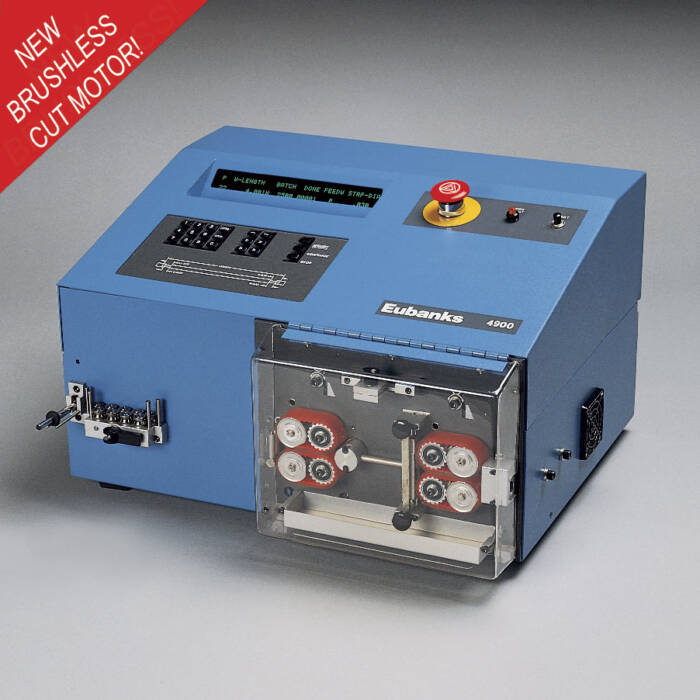

The new 4900 (-21 & -22) is now equipped with a more powerful brushless cut motor.  The new high-precision motor provides more longevity and less maintenance.  It will cut through 10 AWG stranded wire and ¼” Multiconductor cable effortlessly and will precisely strip small delicate 32 AWG wires.

The 4900 has a compact, rugged design perfect for small shops or any department within the company.  The 4900 has an excellent reputation for its long service life, reliability, precision, and ease of maintenance.

The 4900 is equipped with high-quality tool Steel blades.  Custom blades are also available for stripping out-of-round cables, parallel conductor wires, and flat cables. The 4900 comes with a built-in blade loading tool that ensures correct blade installation.  The blade changeover is done in seconds without the need for calibration or blade fastening.

The 4900 can be programmed to do step-stripping, batch counting, and center-stripping.  It can also be programmed to operate in short-length mode.  In short-length mode, the 4900 can cut and strip wire jumpers down to an incredibly 1/8” of an inch(3mm) and with a .050” strip on each end.

The 4900 has a 99-program storage capacity.  For unlimited storage and maximum productivity, the Eubanks 4900 can be controlled with a PC or Laptop, using the Eubanks WireManager for Windows software.

Download the Eubanks Engineering AutoStrip 4900 specifications for more detailed information.

Click here for details on ordering supplies like blades and tools.

Description

DIMENSIONS:

12″H x 20″W x 18″D
(305mm x 508mm x 460mm)

WEIGHT:

Net: 75 lbs. (34kg)
Shipping: 125 lbs. (57kg)

PRODUCTION RATES:

The Model 4900 production rates vary with wire length, strip length, wire size, blade back-up and wire drive speed and acceleration rates. The maximum production rates for 18 AWG wire (0.82mm2) with a 1/4″ (6mm) semi-strip on each end are:

Strip Both Ends (pieces/hour) Cut Only (pieces/hour)
Wire Length Single Wire Dual Wire Single Wire Dual Wire
4″ (100mm) 3,100 6,200 5,000 10,000
20″(500mm) 2,500 5,000 3,600 7,200
40″ (1M) 2,000 4,000 2,800 5,600
100″(2.5M) 1,300 2,600 1,600 3,200
394″(10M) 500 1,000 525 1,050
600″(15M) 320 640 330 660
1200″(30M) 180 360 190 380
