AutoStrip 7600-01/-02

AutoStrip 7600-01/-02

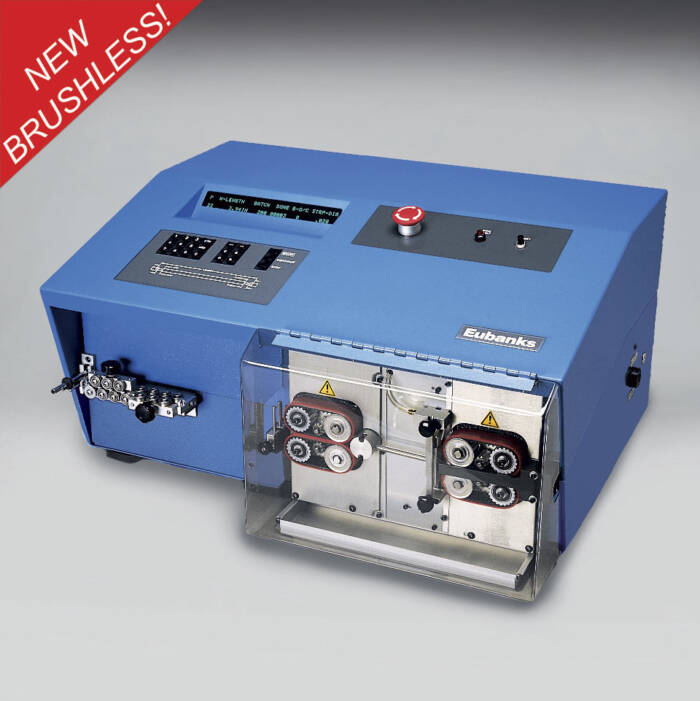

The new Model 7600 is as rugged and powerful as the model 8900. It covers a complete range of wire sizes from 32 through 6 AWG thin stranded wires.  If you are searching for a reliable wire processor that will serve for years and your production needs are from small to medium size wires, the 7600 excels at this range, doing either high-mix & low-volume or high-volume, low-mix.

The Model 7600 uses high-quality tool steel blades.  Eubanks provides a cassette loading tool to insert the blades on the machine.  Blade changeover is done in seconds without the need for calibration or blade fastening.  It will cut and strip wires up to 6 AWG (13.5mm²) thin stranded wire and up to 12 AWG (3.3mm) solid wire.

The 7600 is ideal for communication cables such as Cat 5 & 6.  It will process multi-conductor cables up to 5/16” (8mm) in diameter.  The model 7600 can also produce long strip lengths of up to 20” (500mm) on both ends.  Blades are also available for flat cable and parallel conductor wires.  The 7600 is also a great choice for cutting medical hose tubing to precise lengths.

Download the Eubanks Engineering AutoStrip 7600 specifications for more detailed information.

Click here for details on ordering supplies like blades and tools.

Description

DIMENSIONS:

13″H x 26″W x 22″D
(330mm x 660mm x 560mm)

WEIGHT:

Net: 1441b. (66kg)
Shipping: 2351b. (107kg)

PRODUCTION RATES:

The production rates of the Model 7600 vary with wire length, strip length, wire size, blade back-up and wire drive speed and acceleration rates. The maximum production rates for 18 AWG wire (0.82mm2) with a 1/4″ (6mm) semi-strip on each end are:

Strip Both Ends (pieces/hour) Cut Only (pieces/hour)
Wire Length Single Wire Dual Wire Single Wire Dual Wire
4″ (100mm) 4,100 8,200 7,300 14,600
20″(500mm) 3,400 6,800 5,300 10,600
40″ (1M) 2,700 5,400 4,000 8,000
100″(2.5M) 1,800 3,600 2,300 4,600
394″(10M) 600 1,200 720 1,440
600″(15M) 400 800 480 960
1200″(30M) 250 500 260 520
