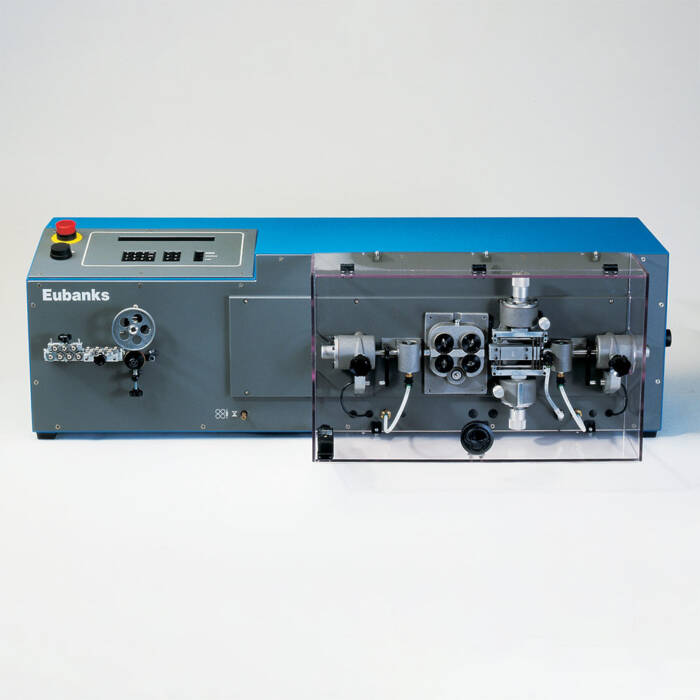

Our flagship pneumatic stripper, the 2700, is a high-speed machine that can handle most anything you can throw at it. Equipped with the standard tooling, the 2700 can cut and strip solid and stranded conductor wires ranging from 22 AWG (0.38mm2) up to 10 AWG (6mm2). With optional tooling and modification kits, the 2700 can process wires from 32 (0.03 mm2) to 8 AWG (8.6mm2), with a max. O.D. of .290 in. (7.4mm). The 2700 can also process a wide variety of cable types such as round or flat multi-conductor cable, parallel conductor cable with 2, 3 or 4 conductors, coaxial cable, and fiber optic cable made of plastic or glass and even with Kevlar reinforced fibers. It’s so flexible that it can process wire lengths from .5 in. to 8,333 feet (13mm to 2540m).
Download the Eubanks Engineering AirStrip 2700 specifications for more detailed information.
New Customers: Click here for information on ordering blades and blocks.
The 2700 cuts and strips both ends of the wire or cable in a single cycle and does this at blinding speeds up to 10,300 pieces per hour. The 2700’s production screen can display the estimated pieces per hour being produced at the current feed speed. The production screen also displays an estimated time of completion. Because it does so much, the AirStrip 2700 is our most popular pneumatic stripper.
User Friendly Programming
The 2700 is microprocessor-controlled, highly reliable, and easy to operate. It stores up to 1,000 programs containing separate wire length, batch quantity, and wire mark spacing parameters. The 2700 has build in wire marking controls for pairing a wire marker. From its console, the operator can select and run programs, step the machine through a complete cycle, and switch from single- to multiple-action. It can easily be converted from inch to metric measurements via the machine’s keyboard. It can display in 6 different languages and also has self diagnostics. It also has length correction compensating fields designed to fine tune to the best exact length tolerance possible.
Our pneumatic strippers use unique hand machined precision die blades and blocks. These setups last years, and deliver the best quality strip available. During the strip function, the blades butt-up against one another cutting perfectly around the circumference of the conductor. During the pull to strip, the insulation is held by perfectly by both top and bottom strip blades giving a perfect linear pull when stripping. The end result is a perfect 180° square cut of the insulation without any damage to the conductor.
We design and manufacture all our own blades using our proprietary processes. These processes assure high-precision performance over a long service life. This is where Eubanks clearly excels. We can design special tooling to do cut strip and slit on parallel wires and also offset stripping. Customers have learned to rely on our extensive strip-blade expertise as they adapt to new insulations and tough applications.
